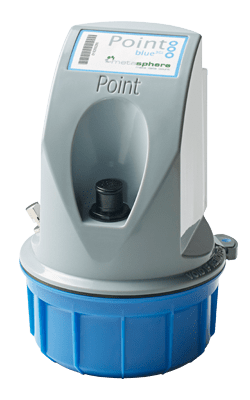

Point Blue 3G RTU

Point Blue 3G RTU

A versatile, intelligent 3G, GSM/GPRS RTU suitable for many applications in harsh and hazardous environments. Features include:

  • ATEX/ IECEx certified (to Zone 0, Gas Group IIB)
  • 5 real-time monitoring sensors
  • Flexible, software-configurable I/O: AI, CI & DI
  • Protocols supported: DNP3, WITS DNP3, Medina, FTP
  • Modbus Master (RS232 & RS485) – up to 10 sensors
  • SDI-12 Multidrop (up to 10 sensors) interface for third-party serial devices
  • 5+ years battery life
  • IP68 up to 4 metres for 4 days
  • Remote configuration & firmware upgrade
  • Patented internal submersion sensor

Integrated bracket for simple installation

Single connection point for external sensors, power and configuration

Optional external antenna

Secure Locking Pin

  • Real time remote monitoring of up to 5 sensors
  • Software Configurable I/O; supports AI, CI and DI
  • Powers external current loop and active voltage sensors
  • Built-in quad band GSM/GPRS or 3G modem with auto switching internal and external antenna
  • Lithium battery with an expected life of 5+ years
  • IP68 enclosure is submersible to 4 meters for 4 days
  • Connects to Medina or DNP3 Masters (e.g. ClearSCADA)
  • Modbus master communicating over RS232 and RS485
  • Remote firmware upgrade
  • Remote configuration
  • Integral immersion sensor
  • Rich telemetry functionality including dynamic trending/logging and intelligent alarm reporting.
  • Flexible integrated installation bracket
  • Automatic external power source detection
  • Non IS variant available – Point Orange.
